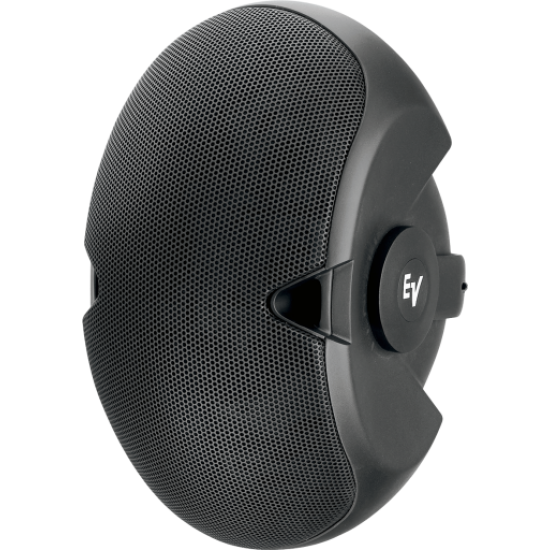

EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker

CHAT US NOW
CALL US NOW
ASK A QUESTION
EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker
EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker
EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker
EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker
EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Price in reward points: 400
Ask via Whatsapp Ask Question
Tags: EVID 3.2 Dual 3.5" 2‑Way Surface-Mount Loudspeaker

EVID 3.2

Dual 3.5" 2‑Way Surface-Mount Loudspeaker


  • Ultra-compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure

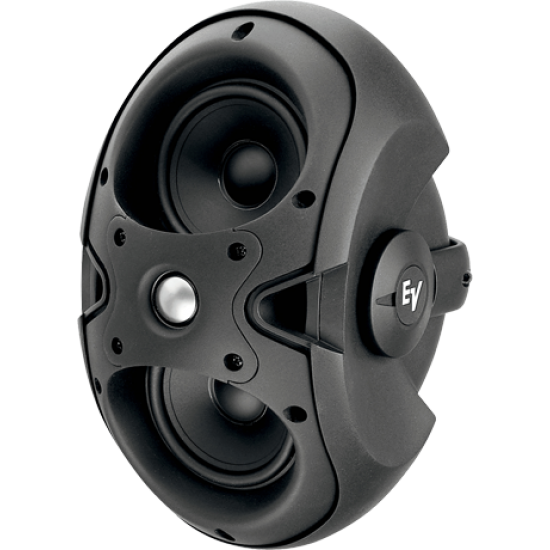

  • 0.75-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems


SPECIFICATIONS
Frequency Range (-10 dB) 85 - 20000kHz
Weight Net 52.91oz (1500g)
Depth 165mm (6.5")
SPECIFICATIONS
Width 127mm (5")
Height 234mm (9.21")
Available Color Black or white
Chassis Size 88.9mm (3.5")
Coverage (Nominal -6 dB) H 140°
Coverage (Nominal -6 dB) V 100°
HF Transducer 0.75-inch
Input Connections Spring Terminal
LF Transducer Two 3.5-inch
Max. SPL/1m (calc) 112dB
Minimum Impedance 6Ω
Nominal Impedance (Passive) 8Ω
Power Rating 300W
Sensitivity 1 W/1 m 87dB
Speaker Type Full-Range, Mid-High, Two-Way
System Power Handling (Continuous/Program/Peak) 75//300Watts
Transformer Taps (Transformer Version Only) 70 V: 5 W, 100 V:10 W
Weatherized Yes
