Order Number: EVID-S44

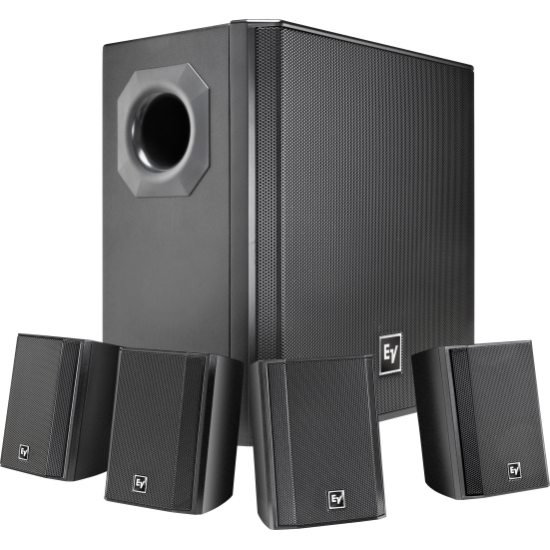

Wall mount speaker system package - surface mount subwoofer and four (4) surface mount satellite speakers; black
More Ordering Information
EVID Compact Sound
Compact Full-Range Loudspeaker System

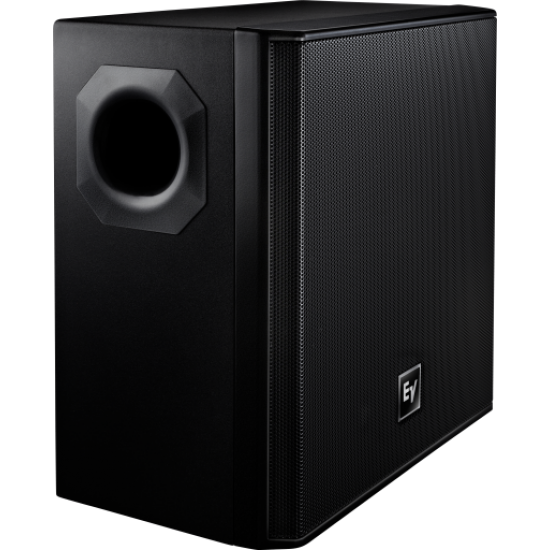

- Subwoofer:
- High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.
- Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.

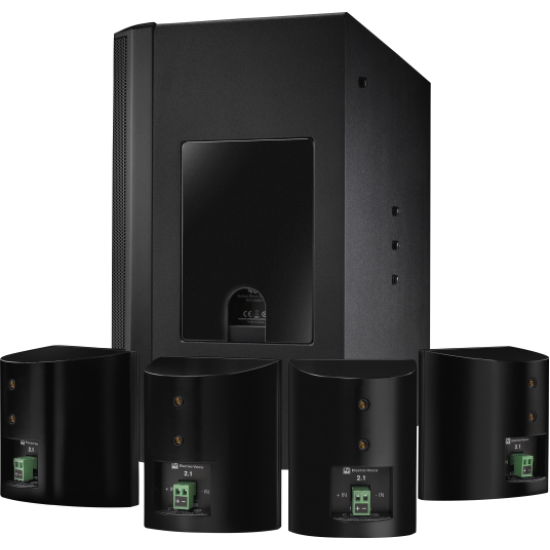

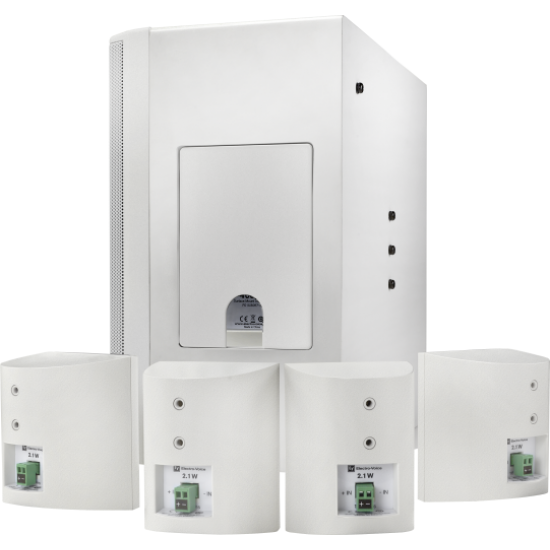

- Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).

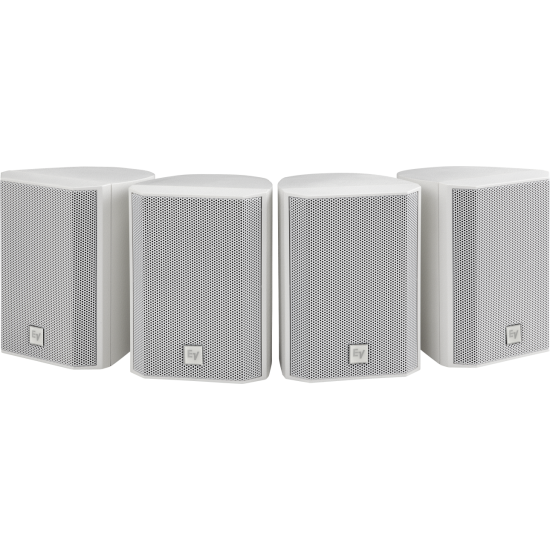

- Satellite Speakers:
- 2” wide-range mid/high-frequency driver designed for broad, even coverage.
- Multi-angle compact mounting bracket system allows for a variety of speaker angles.
- Rigid high-impact ABS enclosure for durability.
The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.
In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike. Available in black or white finish.
| SPECIFICATIONS |
|
| Frequency Range (-10 dB) |
EVID 2.1: 180 Hz - 20 kHz; EVID 40S: 180 Hz - 20 kkHz |
| Weight Net |
EVID 2.1: 0.5kg; EVID 40S: 12.05kg |
| Depth |
EVID 2.1: 95mm; EVID 40S: 230mm |
| SPECIFICATIONS |
|
| Width |
EVID 2.1: 85mm; EVID 40S: 400mm |
| Height |
EVID 2.1: 115mm; EVID 40S: 400mm |
| Available Color |
Black or white |
| Bracket Adjustment Range |
EVID 2.1: 160° x 60° ; EVID 40S: Fixed |
| Connector Type |
Phoenix (2-pin) |
| Coverage, Music |
EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional |
| Coverage, Voice |
EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional |
| Enclosure Material |
EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF); |
| Impedance |
EVID 2.1: 16Ω; EVID 40S: Dual 8Ω / mono 4Ω |
| Included Accessories |
Wall bracket; hex wrench |
| Maximum SPL |
EVID 2.1: 100 dB; EVID 40S: 114dB |
| Passive Power Handling |
200W peak |
| Power Handling (Continuous / Peak) |
EVID 2.1: 30 W; EVID 40S: 200W |
| Power Rating |
200W |
| Sensitivity 1 W/1 m |
EVID 2.1: 84 dB; EVID 40S: 88dB |
| Shipping Weight |
1 sub and 4 satellites: 18.26kg |
| Transducer |
EVID 2.1: 50 mm (1.97 in); EVID 40S: 200mm |
| Transformer Taps (Transformer Version Only) |
EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25 |
