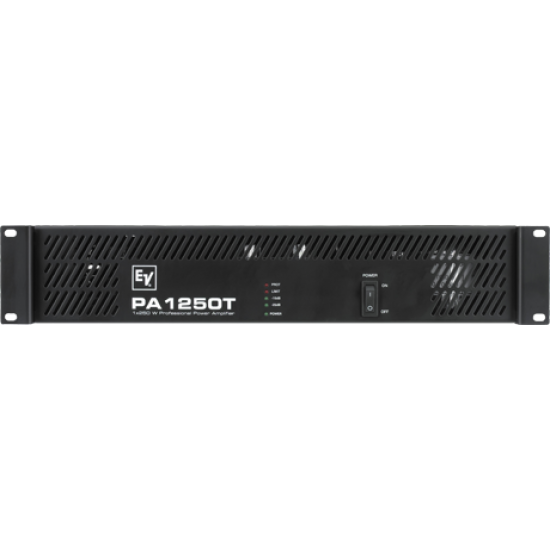

PA1250T

Single‑Channel 250 W Power Amplifier

  • Cool-running, saturation-free power for distributed installations
  • Ideal for sound reinforcement, paging, and life safety
  • 250 W mono for 70/100 V lines
  • Compact 2 RU design
  • Stepped rear-panel level attenuation
  • Selectable 50 Hz or 300 Hz high-pass filter
  • Thermal protection, peak limiting, turn-on delay
  • Phoenix-type inputs and outputs
  • Three-stage front-to-rear fans
  • Integrated rack ears for direct mounting


SPECIFICATIONS
Weight Net 16.5kg (36.38 lbs)
Depth 406mm (15.98")
Width 483mm (19.02")

  Height		 88mm (3.46")
Channels 1
Continuous Rated Power (1 kHz, THD 1%) 100v 270Watts
Continuous Rated Power (1 kHz, THD 1%) 2Ω 270Watts
Continuous Rated Power (1 kHz, THD 1%) 70v 270Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 100v 250Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v 250Watts
Crosstalk <
  < -75dB
DIM 30 <
  0.1%
Frequency Response (-3 dB) 65Hz-20kHz
Input Impedance (Balanced) >
  20kΩ
Input Sensitivity 0
  dBu
Intermodulation Distortion (SMPTE) <
  0.1%
Network Control (IRIS-Net) No
Number of Channels 1
Signal-to-Noise Ratio (A-weighted) 103dB
Slew Rate 41/61V/µs
Total Harmonic Distortion <  0.1%
