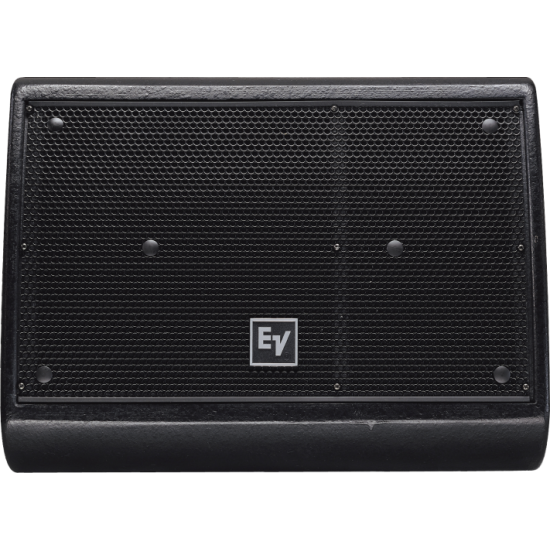

Xw12A 12" Floor Monitor
$0.00
Ex Tax: $0.00
Tags:
Xw12A
Xw12A
12" Floor Monitor
- Two-way, high-output design
- Vented LF enclosure
- Two symmetrical 55º enclosure angles
- Ultracompact for all-size stages
- 3-inch ND6-16 titanium/neodymium HF compression driver
- 80º x 55º Constant-directivity horn
- Neutrik Speakon® paralleled pass-through connectors on each end
- Two integrated handles
- DL12ST woofer with Ring-Mode Decoupling for vocal clarity
Our top-of-the-line floor monitors, originally designed as part of the X-Array touring line.
| SPECIFICATIONS | |
|---|---|
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weight Net | 21.9kg (48.28 lbs) |
| Depth | 313mm (12.32") |
| Width | 449mm (17.68") |
| Height | 534mm (21.02") |
| Available Color | Black |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 98/110dB (LF/HF) |
| Chassis Size | 304.8mm (12") |
| Coverage (Nominal -6 dB) H | 55° (Const.-dir. horn) |
| Coverage (Nominal -6 dB) V | 80° (Const.-dir. horn) |
| Crossover Frequency | Factory presetHz |
| Directivity Index | 11.6dB ((+2.3/-2.1dB) 1,200 - 16,000 Hz) |
| Enclosure Material | 13-ply birch plywood with Futura |
| Flying | No |
| Frequency Response (-3 dB) | 65 - 18000kHz |
| HF Nominal Impedance | 16Ω |
| HF Power Handling | 75Watts |
| HF Transducer | 1.4-inch (ND6-16) |
| Input Connections | 2 four-pin Speakon |
| Internal Crossover | No |
| LF Nominal Impedance |
8Ω |
| LF Power Handling | 300Watts |
| LF Transducer | 12-inch (DL12ST) |
| Speaker Type | Line Arrays, Subs |
