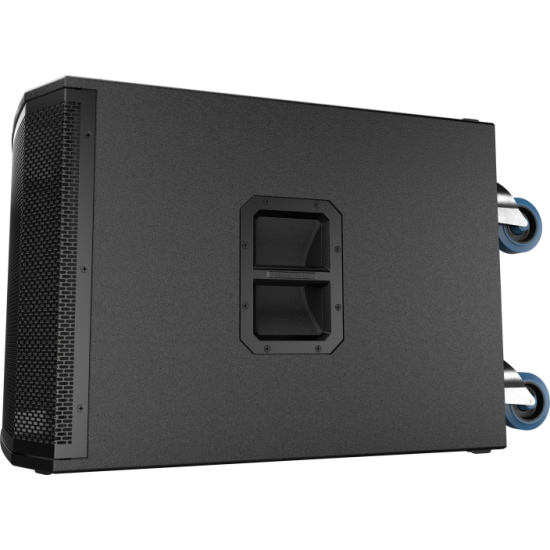

ETX-18SP

18" Powered Subwoofer

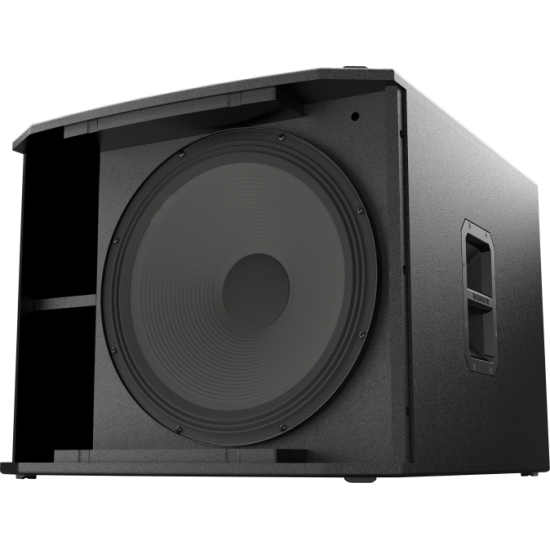

18-inch DVX woofer for extended low-frequency response
1800 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL

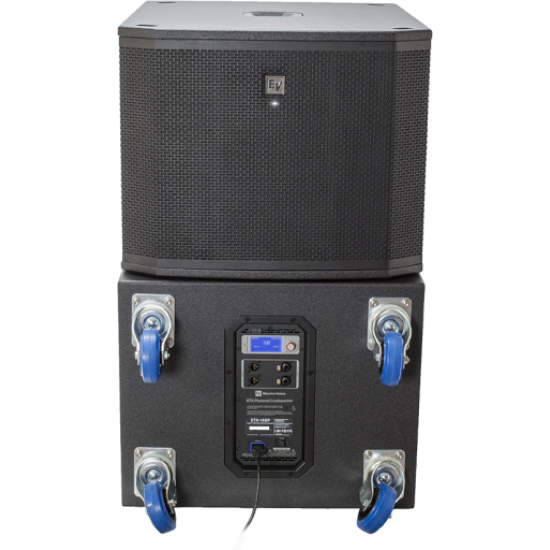

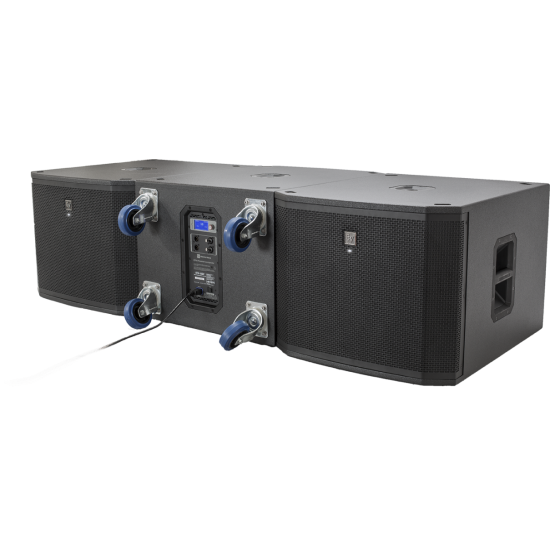

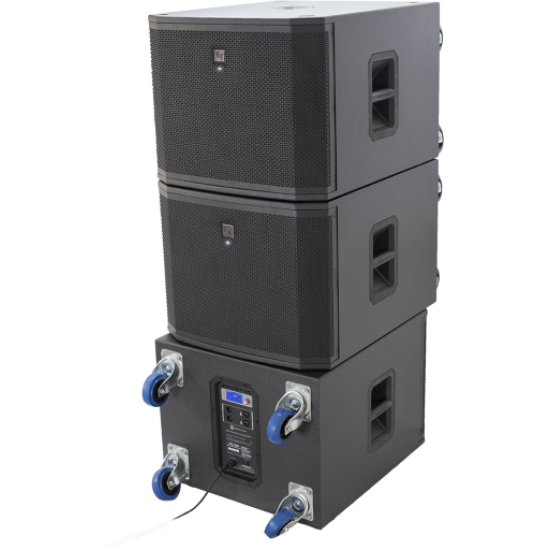

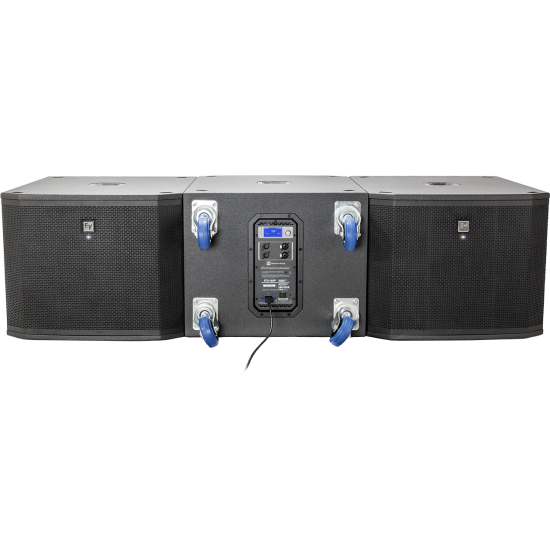

Special DSP preset for true cardioid performance across the full operating bandwidth

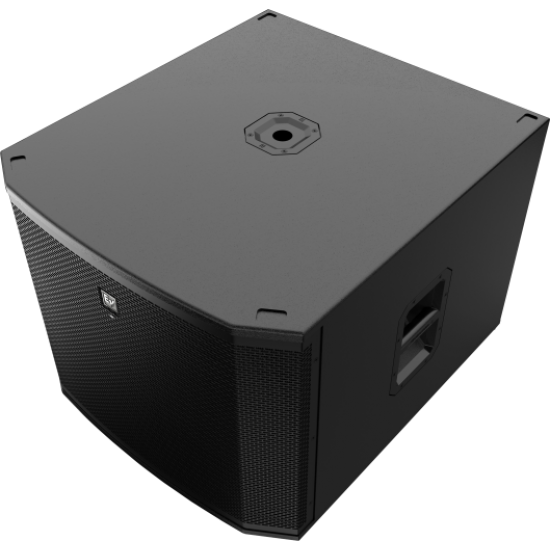

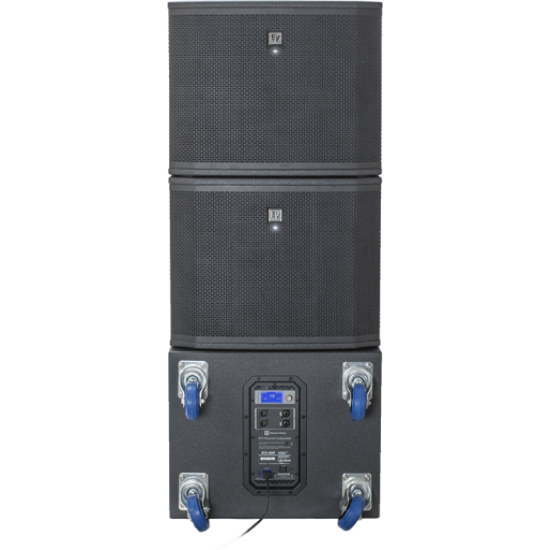

Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models

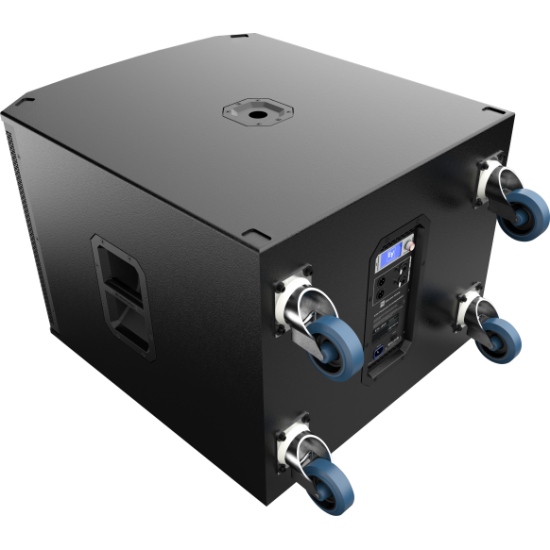

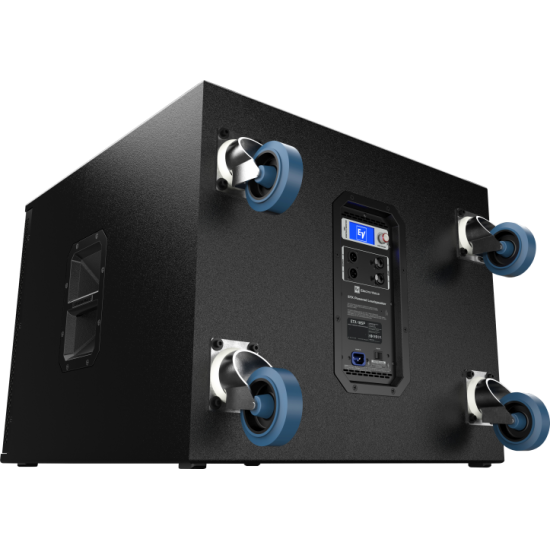

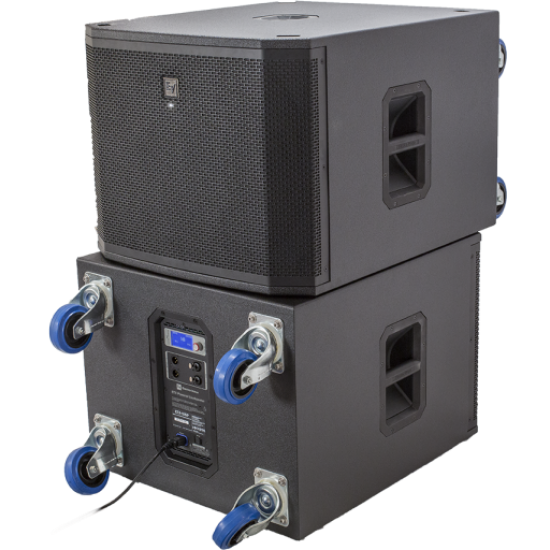

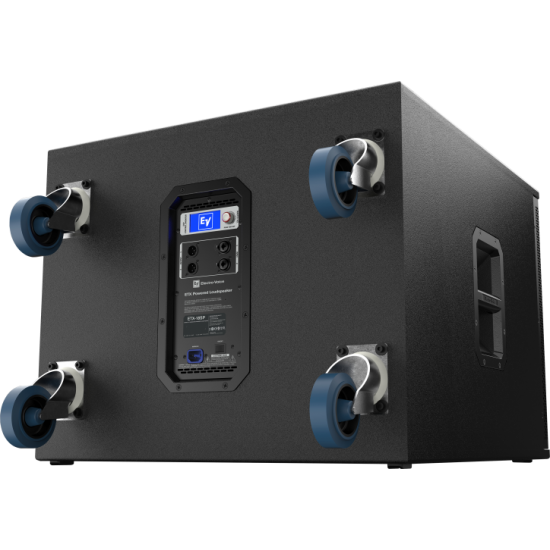

Removable casters

SPECIFICATIONS
Power Rating	1800 W
LF Transducer	DVX3180A 457 mm (18 in)
Low Pass Frequency	Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
SPECIFICATIONS	Omnidirectional
Power Rating	700W
Connectors	(2) XLR/TRS Combo Jack and (2) XLR link Outpu
Enclosure	18 mm, 13-ply birch plywood with EVCoat
Grille	16AWG steel with powdercoat
Dimensions (H x W x D)	550 mm x 675 mm x 910 mm (22 in x 27 in x 36 in)
Dimensions (H x W x D)	without casters 550 mm x 675 mm x 777 mm (22 in x 27 in x 31 in)
Net Weight	51.8 kg (114.2 lb)
Shipping Weight	58.9 kg (129.9 lb)
Power Consumption	100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
